⚡ ET SERIES – Smart Data Logger
A Reliable, Intelligent, and Scalable Data Acquisition Solution for Smart Energy and Industrial Systems
Project Overview
The ET Series Data Logger Project is a flagship development by ASW Technologies PVT. LTD., aimed at revolutionizing data acquisition and communication across residential, commercial, and industrial sectors. This project was conceptualized and implemented to deliver simplified data transfer solutions with unmatched reliability and performance.
Designed for compatibility with diverse industrial devices such as energy meters, inverters, BMS, and switchgear, the ET Series ensures seamless data logging and communication over multiple networks — Wi-Fi, RF, LoRa, 4G, and Ethernet. Each device in the ET Series is engineered to operate independently or as part of a large-scale, integrated data acquisition ecosystem.
ET (Energy Transfer) Series of Data Loggers are our newest fleet of data acquisition & concentrator modems that can work in any residential, commercial or industrial data acquisition projects. These modems can perform both in standalone applications or situations where multi-modal networks need to be established. These data-loggers are designed with a view of maximizing efficiency & reducing packet drops in data intensive applications without the need to worry about network or hardware layers that make data acquisition or reception a challenge.
Project Info
- Domain: IoT, Data Acquisition & Smart Energy
- Technology: RS232/RS485, LoRa, Wi-Fi, 4G/LTE, MQTT, MODBUS
Key Features & Capabilities
Plug & Play Connectivity
Works seamlessly with all types of inverters, energy meters, BMS, and switchgear, enabling effortless integration into any existing industrial or utility system.
Built-in Data Storage
Equipped with onboard flash memory to ensure zero data loss and reliable logging, even during network interruptions or power failures.
Data Pool During Outage
Automatically stores and syncs all readings collected during communication downtime, guaranteeing uninterrupted data continuity once the connection is restored.
Battery-Backed Outage Alerts
Integrated battery feature captures real-time outage notifications and records outage durations, enhancing fault visibility and maintenance response.
Rugged Industrial Enclosures
Delivered with IP55/IP64/IP65-rated protective enclosures (as per model), ensuring dependable operation in harsh and outdoor environments.
Extended Local Data Storage
Offers 6 months to 2 years of onboard data storage capacity (depending on configuration), supporting long-term trend analysis and regulatory compliance.
Communication Specification
- Configurable Slave ID, Baud Rate, Parity, Stop Bits
- Supported Baud Rates – 4800 to 115200
- Supports MODBUS RTU, ASCII, TCP/IP Protocols
- Extended software support for Proprietary Protocols
Environmental
- Operating Voltage 12VDC to 24VDC
- Operating Temperature-25° to +55 °Celsius
- Ambient Relative Humidity 5 ~ 95% RH, non-condensing
Application Controllers
Automated Meter Reading (AMR/AMI)
Energy Monitoring/Management Systems (EMS)
Water Monitoring Systems (WMS)
Gas Monitoring System (GMS)
Temperature Data Logging
Sensor Data Logging
Industrial Control & Flow Measurements
Data Acquisition Systems & PLC/SCADA
Battery Management Systems
Product Variants & Modules
The ET Series family includes multiple models, each built to serve a specific range of communication requirements. These modules provide flexibility for every application from short-range data transmission to long-distance connectivity.
- ET-WL-123C: RS232/RS485 to Wi-Fi converter for wireless networks.
- ET-RF-24G: RS232/RS485 to RF modem for short-range radio communication.
- ET-LR-10K: RS232/RS485 to LoRa modem for long-range low-power connectivity.

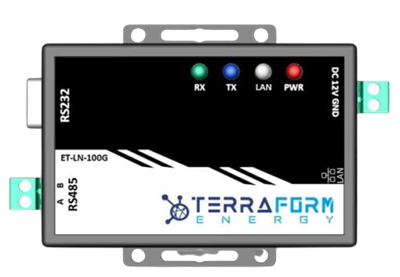

- ET-LN-100G: RS232/RS485 to Ethernet/Wi-Fi gateway for hybrid wired networks.
- ET-IOT-124G: RS232/RS485 to 4G/LTE modem for remote IoT applications.
Our Offerings
The ET Series project reflects our expertise in delivering end-to-end IoT and energy data solutions. Beyond hardware design, Energy Terraform provides complete implementation support — from site survey to integration.
- Custom-built data loggers as per client needs and network environments
- Integration with Energy Management Systems (EMS) and SCADA
- On-site installation and commissioning support
- 1-year hardware warranty with extended AMC options
- Software APIs for remote data access and analytics
- Dedicated post-deployment service and maintenance
Benefits & Impact
- Ensures uninterrupted and accurate data acquisition from critical devices
- Improves operational visibility for energy and industrial management systems
- Reduces manual data collection and site visits
- Enhances productivity through real-time insights and analytics
- Supports smart city, utility, and industrial IoT applications
The ET Series Data Logger Project stands as a testament to Energy Terraform’s innovation in industrial data technology. With robust communication capabilities, advanced protection, and flexible connectivity, the ET Series simplifies complex data ecosystems into one reliable, scalable network.
From small-scale plants to large industrial networks, our ET Series enables smarter, faster, and more efficient data management — empowering businesses to make informed, data-driven decisions for a connected and sustainable future.
